Industrial China Professional Crushed Stone Conveyor Belt

FOB Reference Price:Get Latest Price
US $10-55 / Meters | 300 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
conveyor belt
Material:
Rubber,polyester and polyamide
Material Feature:
cold,heat-resistant,Anti-Acid and Alkali,anti-static,anti-impact
Structure:
conveyor belt
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
KAIDI or OEM
Model Number:
CC,NN100-NN500,EP100-EP630,
Certification:
ISO9001:2008
Production Standard:
GB/T 7984-2001
Color::
Black
Supply Ability
Supply Ability:
30000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Generally the belt is packed by nylon cloth,rubber core inside. 1x20ft can load 6-20 rolls of belt.we can also pack the belt according to customer's requirement.
Port
SHANGHAI, NINGBO
Lead Time :
Normally the order can be finished within 20days after Deposite.

Specifications

Features:
1.Elongation : >350% -->450%.
2.Belt width (mm): 250-2,100.
3.thickness:5-50mm.
Abrasion loss:< 120mm3(24mp).

Usage:

Suitable for coal mine, Cement,constructures, warehouse goods conveying,ports, docks, long distance, high strength, large volume of use.



Varieties:

According to cover the performance can be divided into: ordinary type, smoldering, heat-resistant, wear-resistant, and resistant to Cold type, acid type, oil type varieties.



FEATURE:

A: EP multi-ply is one of the best quality synthetic fibers that the rubber industry
uses nowadays. The EP multi-ply cascass is woven by polyester in warp and polyamide
in weft, it is most widely used fabric in rubber industry, and its outstanding
merits are high abrasion resistance, high tensile strength;

B: EP Conveyor belts has the characteristics of the low elongation in warp and good trough ability in weft, good water resistance, wet strength is not reduced, not mildew, initial modulus polyester high, desirable safety coefficient is low.

C: EP Conveyor belts are suitable for long-distance and  high speed under the condition of high load conveying material , which is widely used in mining, metallurgical
industry and architectural industry and ports.



The detail data for EP Coneyor belt as following  form:





Specification and technical data of multi-ply EP conveyor belt



Fabric specsPly thickness (mm/p)Strength series (N/mm)Cover Thickness (mm)WidthLength
  2ply3ply4ply5ply6plyTopBottommmm
EP800.81602403204004802.0--80--4.5300  --  2500≤300
EP1000.82003004005006002.0--80--4.5300  --  2500≤300
EP1250.852503755006257502.0--80--4.5300  --  2500≤300
EP1500.93004506007509002.0--80--4.5300  --  2500≤300
EP17513204806408009602.0--80--4.5300  --  2500≤300
EP2001.2400600800100012002.0--80--4.5300  --  2500≤300
EP2501.45007501000125015002.0--80--4.5300  --  2500≤300
EP3001.56009001200150018002.0--80--4.5300  --  2500≤300
EP3501.770010501400175021002.0--80--4.5300  --  2500≤300
EP4002.280012001600200024002.0--80--4.5300  --  2500≤300
EP5002.5100015002000250030002.0--80--4.5300  --  2500≤300





Adhesion and elongation of belt







Belt carcass
Adhesive strength
elongation

Between plies(N/mm)
Between rubber and carcass
Longitudinal elongation at break%≥
Longitudinal elongation at reference load%≤
EP canvas
≥5
≥5
10
2.0







Technical data of cover rubber







Cover grade
Tensile strength
      ≥
Elongation
    ≥
Abrasion
   ≤
Change rate of tensile strength and elongation after aging

   MPa
    %
   mm3
%
RMA1
   17
400
175
-25+25
RMA2
   14
350
250
-25+25
  Z
   15
350
250
-25+25
  Y
   20
400
150
-25+25
  X
   25
400
120
-25+25
  W
   18
400
90
-25+25











Factory and Workshop show:

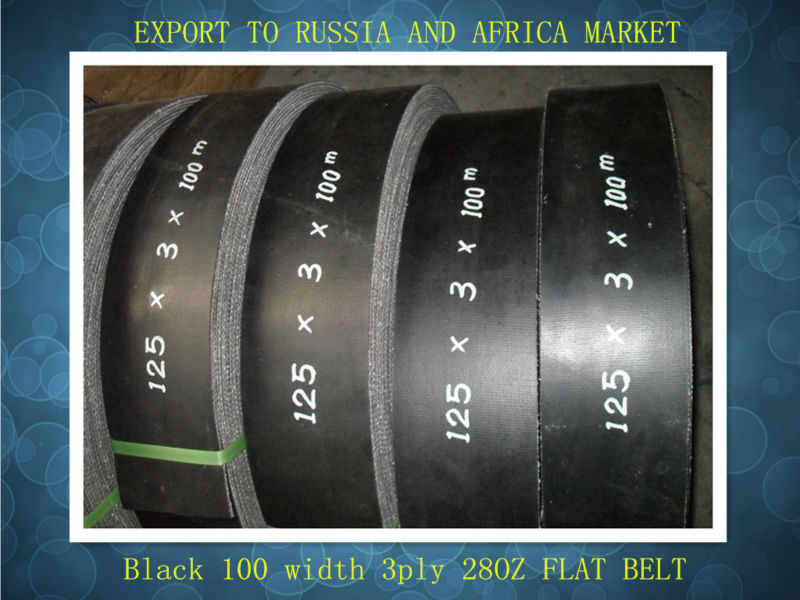

OTHER RUBBER BELT:

TESTING DEVICE OF RUBBER BELT:
