China Zhejiang Tazihou Nylon/NN Conveyor Belt used in Cement Plant and port

FOB Reference Price:Get Latest Price
US $8-45 / Meters | 200 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Conveyor belt
Material:
Rubber and Nylon300
Material Feature:
oil,cold,heat-resistant,Anti-Acid and Alkali,anti-static
Structure:
Conveyor belt
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
KAIDI or OEM
Model Number:
NN100/NN150/NN200/NN300
Certification:
ISO9001:2008
Production Standard:
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173
Tensile Strength::
10-24 MPA
NN strength grade::
80-500N/mm
Usage::
Mining,stone Quarry,Metallurgical Industry ,electric
Supply Ability
Supply Ability:
150000 Meter/Meters per Month
Packaging & Delivery
Packaging Details
Generally the belt is packed by nylon cloth,rubber core inside. 1x20ft can load 6-20 rolls of belt.we can also pack the belt according to customer's requirement.
Port
SHANGHAI, NINGBO
Lead Time :
Normally the order can be finished within 20days after Deposite.

Usage:

Suitable for coal mine, constructures, factories, ports, docks, long distance, high strength, large volume of use.



Varieties:

According to cover the performance can be divided into: ordinary type, smoldering, heat-resistant, wear-resistant, and resistant to. Cold type, acid type, oil type varieties.



FEATURE:

A:Nylon is one of the best quality synthetic fibers that the rubber industry
uses nowadays. The nylon canvas is woven by nylon fibers both in warp and
in weft, it is most widely used fabric in rubber industry, and its outstanding
merits are high abrasion resistance, high tensile strength and good fatigue
resistance.

B:Conveyor belts with nylon canvas inside have the characteristics
of thin belt body, high tensile strength, good shock resistance, good
through ability, high adhesion between plies, splendid flexibility and long
working life.

C:Nylon conveyor belts are suitable for medium, long-distance and
heavy-load transportation of materials, widely used in mining, metallurgical
industry and architectural industry and ports.



The detail data for NN Coneyor belt as following  form:





Specification and technical data of multi-ply nylon conveyor belt



Fabric
type

Fabric
structure


Fabric
spece


Ply
Thickness
(mm/p)

N/mm)
Strength series

(mm)
Cover thickness

Width
(mm)

Length
(mm)


Warp


Weft

2ply

3ply

4ply

5ply

6ply

Upper

Upper

Nylon
(NN)

Nylon
(N)

Nylon
(N)

NN-100

0.75

200

300

400

500

600

1.5-12

0-4.5

400-2500

≤300

NN-150

0.8

300

450

600

750

900

NN-200

0.9

400

600

800

1000

1200

500-2500

NN-250

1.15

500

750

1000

1250

1500

NN-300

1.25

0

900

1200

1500

1800

NN-400

1.45

0

0

1600

2000

2400

800-2500

NN-500

1.55

0

0

2000

2500

3000





Adhesion and elongation of the belt

Project

Between Plies
N/mm

N/mm
Between rubber and carcass

Elongation

0.8-1.5mm

>1.5mm


Longitudinal
elongation at break
% ≥


Longitudinal elongation
at reference load
% ≤

All the sample average ,N/mm,≥

4.5

3.2

3.5

All samples minimum peak,N/mm,≥

3.9

2.4

2.9

10

4

   Note: All samples shall not exceed the peak values 20N/mm



Conver properties of the belts


Conver grade


Tensile strength


Elongation


Abrasion

Change Rate of tensile strengh
and elong after aging

Mpa

Kgf/cm2

%

mm3

%

Strong designated-type working conditions(H)

24

240

450

120

-25+25

Strong wear working conditions(D)

18

180

400

100

-25+25

General working conditions Light(L)

15

150

350

200

-25+25



DIN and RMA PRODUCTION STANDARD:






RAW MATERIAL FOR Nylon Fabric and Natural rubber:

.jpg

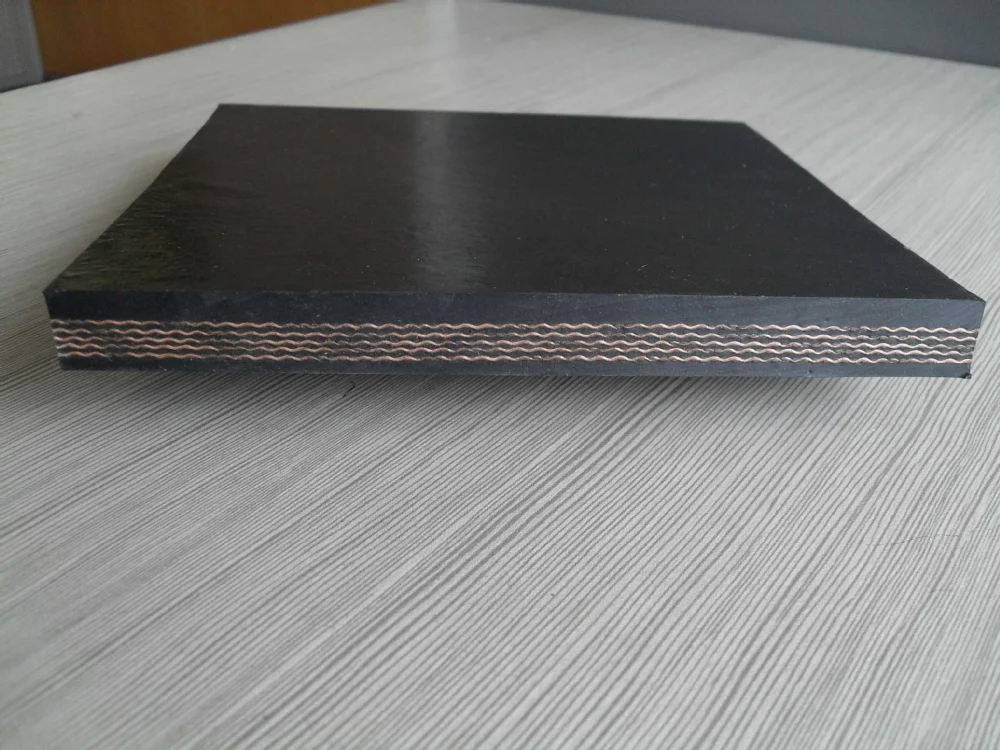

NN RUBBER CONVEYOR BELT SHOW:

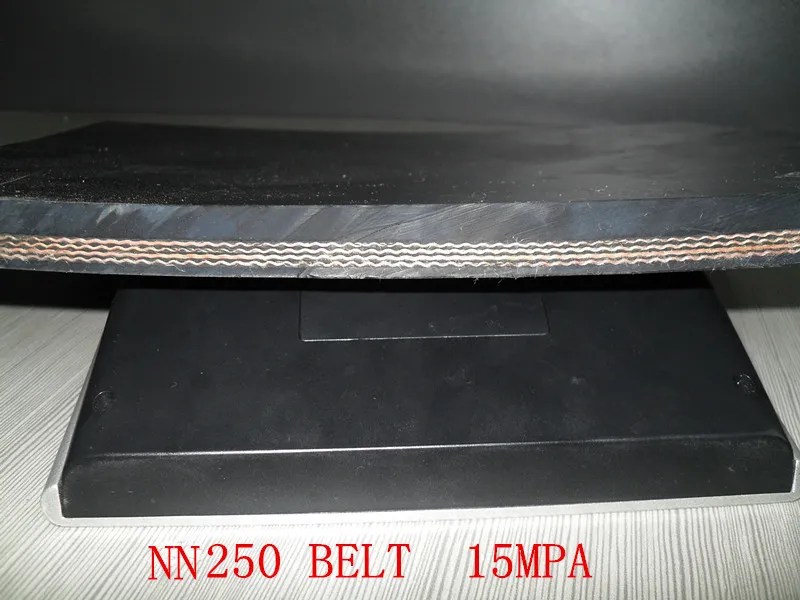

NN200.JPGNN250 CONVEYOR  BELT.jpg

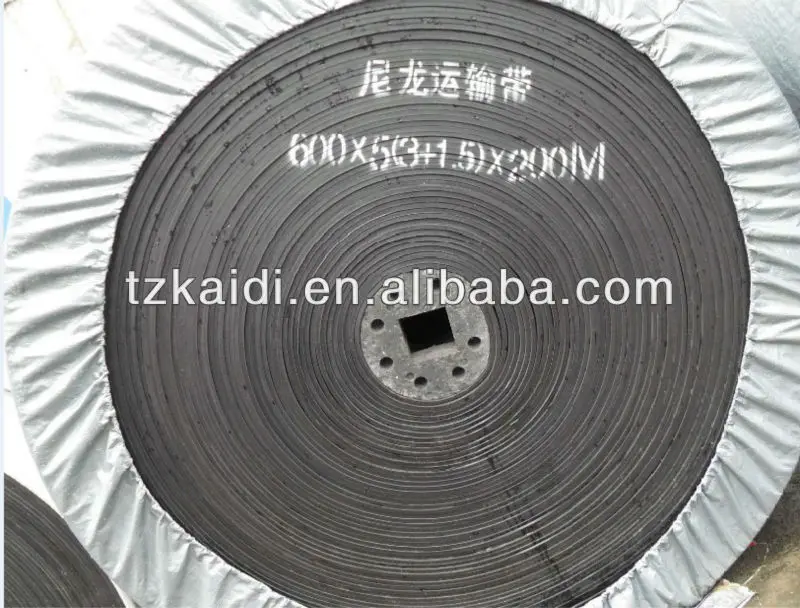

NN CONVEYOR BELT 600X5(3+1.5)X200M.jpg

STOCK 11



FACTORY and WORKSHOP SHOW:

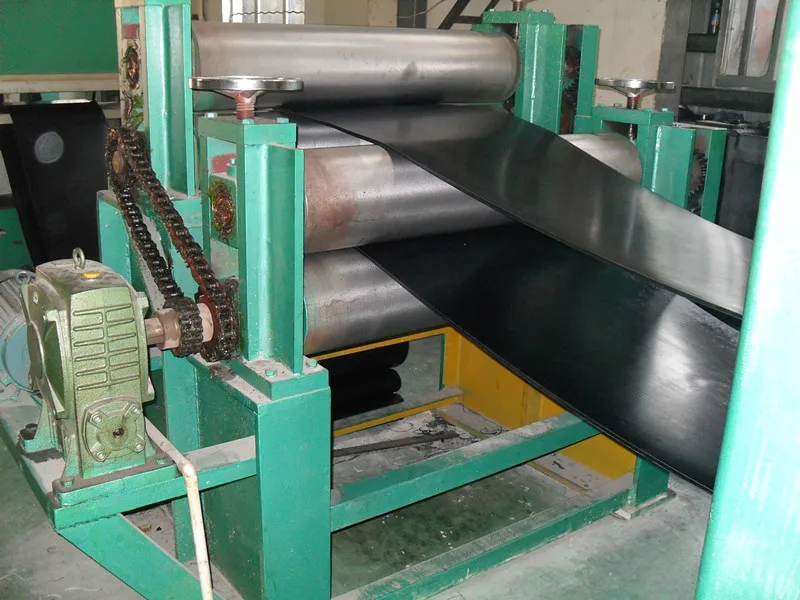

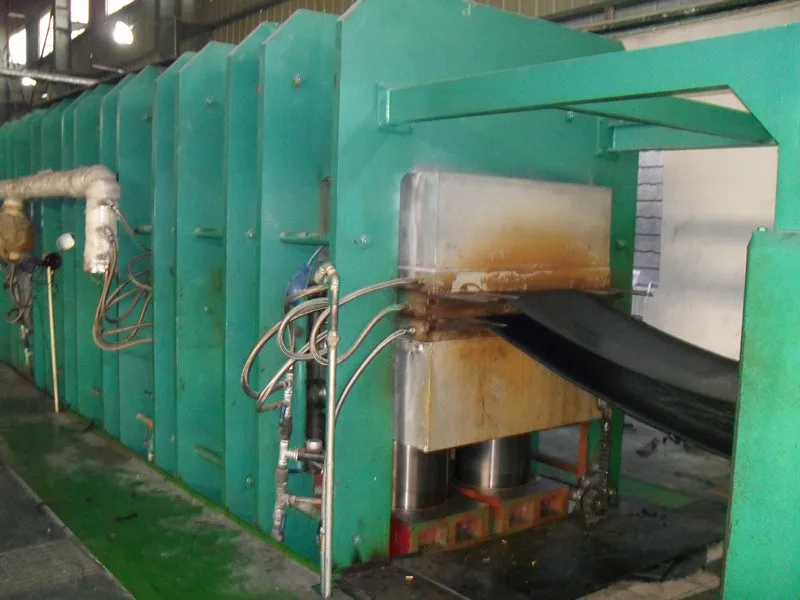

taizhou kaidi belt factory.jpgbelt shaping line-1.jpgbelt vulcanizing line--2.jpgbelt vulcanizing  line--3.jpgbelt vulcanizing  line--4.jpgbelt vulcanizing  line--5.jpg

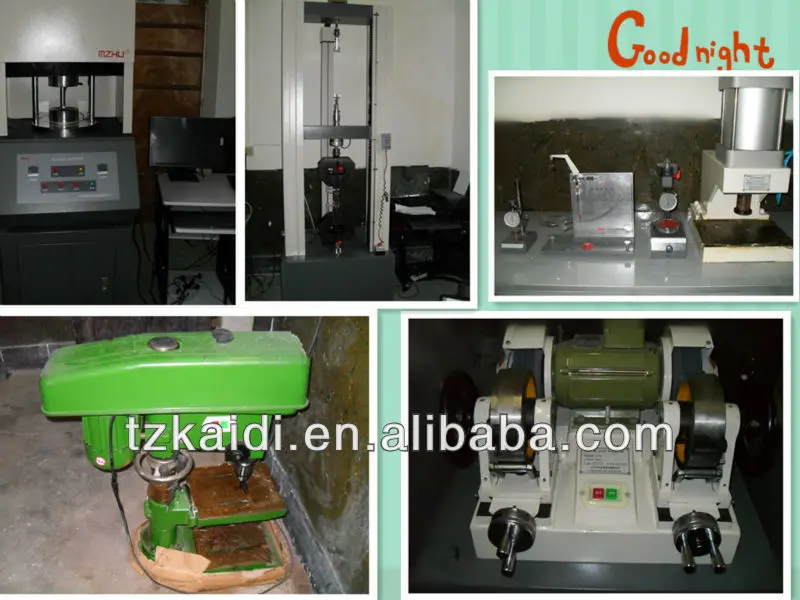

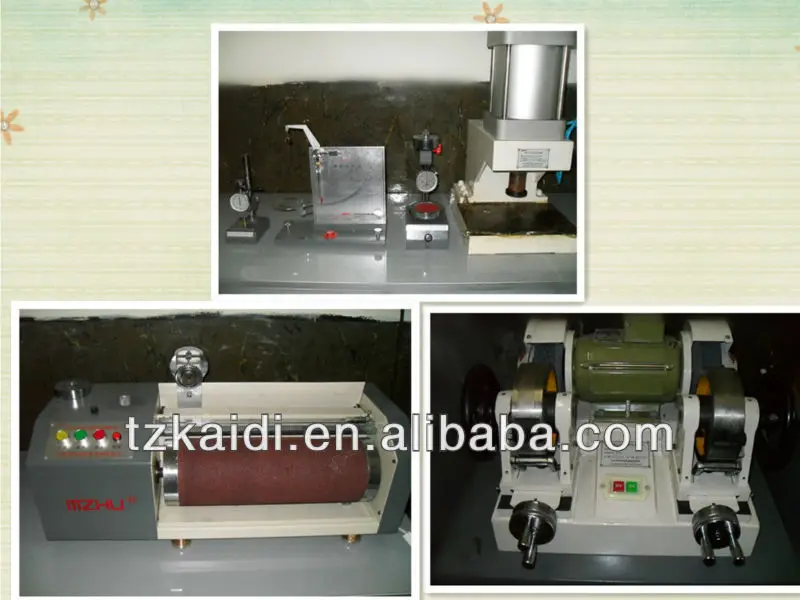

QUALITY TESTING DEVICE:
